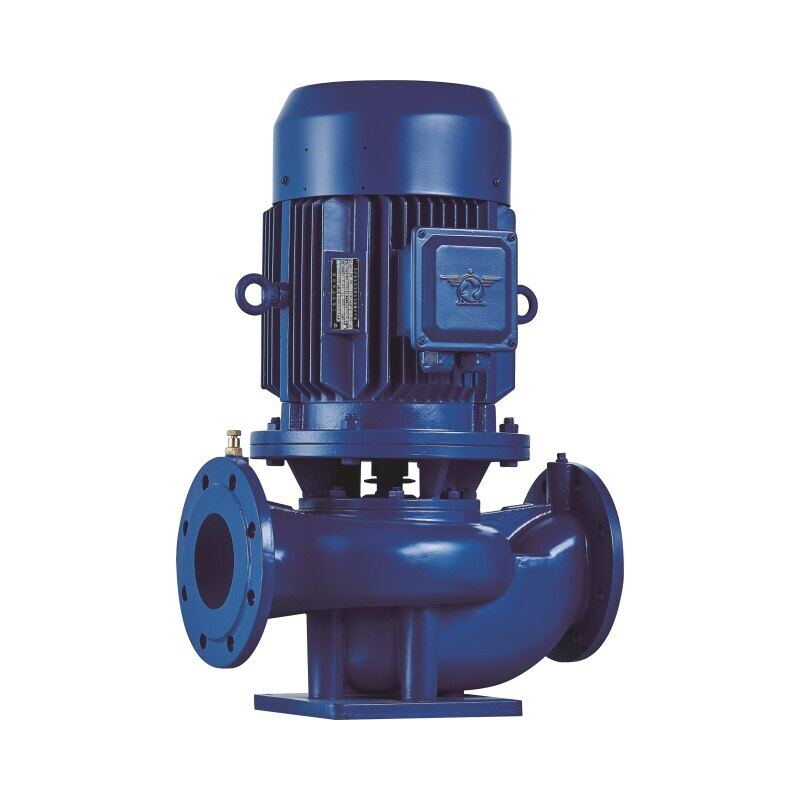

Industrial fluid-transfer systems often need a pump that fits the existing pipeline as well as the hydraulic duty. Kenflo's GD In-Line Centrifugal Pump uses a vertical in-line, close-coupled arrangement for clean water and liquids with physical and chemical properties similar to water. The common-shaft design, direct pipeline installation and compact footprint make layout and installation important parts of the selection process.

Where an In-Line Pump Fits

An in-line pump is installed within the pipeline rather than arranged as a conventional floor-mounted pump set. GD is a vertical in-line centrifugal pump arrangement: the pump is mounted in the pipeline, while the suction and discharge nozzles are positioned on the same horizontal axis. This allows the pump to be installed at a point in the pipeline, in a similar position to a valve.

The arrangement is relevant when a building or industrial facility has limited equipment-room space, or when a pipeline layout needs a compact circulation and transfer pump. The application still needs to be checked from the required flow, head, liquid properties, temperature and installation conditions. A compact layout does not remove the need for correct hydraulic selection.

Common Shaft and Easier Installation

GD uses a common shaft between the pump and motor. Kenflo describes this arrangement as eliminating the need for shaft alignment. The pump can be installed directly into the pipeline without specially designed adapters, which can simplify the installation work when the connections and system duty are correctly matched.

The common-shaft structure also helps define the product's maintenance and layout requirements. The pump and motor form a close-coupled unit, so the engineering team should confirm lifting access, isolation points and service clearance before installation. Kenflo provides for horizontal or vertical installation; the selected orientation must suit the pipeline and support arrangement.

Compact Structure for Limited Floor Space

GD is designed as a compact close-coupled pump. Kenflo's product information states that it occupies more than 50% less floor space than conventional single-stage centrifugal pumps and weighs over 30% less than those pumps. These figures are Kenflo product references; the actual installation still needs to be checked against the site layout.

The space benefit is most useful when the pump is being integrated into an existing pipeline or a restricted plant room. Before replacing a conventional pump, check the actual pipe centerline, nozzle loads, access route, isolation arrangement and maintenance space. The pump's compact dimensions do not by themselves confirm that an existing installation can be modified without design review.

GD Operating Range

The GD listed range is shown below and is used with the selected model's performance information and the actual system duty.

The same product listing also presents a separate GDR hot-water in-line pump with a listed head of 8–150 m, flow rate of 2.4–960 m³/h and medium temperature below 130°C. These GDR figures belong to GDR and are not GD specifications.

Materials, Sealing and Hydraulic Design

GD is intended primarily for clean water at room temperature or liquids with physical and chemical properties similar to water. The product information identifies HT200 as the typical material for the casing, impeller and close-coupled frame, with HT250 used for the casing of high-power pumps. Optional materials such as copper alloy, stainless steel and imported mechanical seals are available upon customer request.

The shaft seal is described as a high-temperature mechanical seal, and the product information states leak-free operation. Material and seal choices should still be matched to the actual medium, temperature, pressure and operating cycle. The available options do not mean that GD is suitable for every corrosive or high-temperature liquid.

Kenflo also describes hydraulic design intended to reduce operating costs, reliable operation, convenient maintenance, high parts interchangeability and wide performance coverage. These characteristics support evaluation, but the final selection remains dependent on the required flow, head, liquid properties and system layout.

Applications for GD and GDR

GD is described for air-conditioning systems, water circulation systems, building water-supply and drainage networks, and other water-transfer applications. GDR is a separate hot-water in-line pump listed for bathrooms, heating systems, hot and chilled-water circulation, boiler feed and drainage applications.

For an existing system, confirm the liquid temperature and pressure before selecting between the GD and GDR information. Then compare the required flow and head with the listed product range and the selected model's performance data. Installation orientation, pipeline support and maintenance access should be reviewed at the same time.

What to Confirm Before Ordering

A useful inquiry for a GD in-line pump should include:

• Required flow rate and head

• Liquid name and physical and chemical properties

• Normal and maximum medium temperature

• Operating pressure

• Pipeline connection and installation orientation

• Available floor space and service clearance

• Motor speed and electrical requirements

• Required casing, impeller and mechanical-seal materials

These details allow the pump to be checked against the hydraulic duty and the physical installation rather than selected from the in-line format alone.

FAQ

Does the GD pump require shaft alignment?

No. The pump and motor share a common shaft, and Kenflo describes the design as eliminating the need for shaft alignment.

Can GD be installed directly in a pipeline?

Yes. GD is a vertical in-line centrifugal pump with suction and discharge nozzles on the same horizontal axis. Kenflo states that it can be installed directly in the pipeline without specially designed adapters, subject to the actual installation design.

How much floor space can GD save?

Kenflo states that GD occupies more than 50% less floor space than conventional single-stage centrifugal pumps and weighs over 30% less. These are Kenflo product references; the actual site arrangement should be checked separately.

What is the GD operating range?

The listed GD range is 8–50 m head, 2.4–410 m³/h flow rate, medium temperature below 80°C, pressure-bearing below 1.0 MPa and speed of 1450 (1480) or 2900 r/min. The selected model must be checked against the system duty.

Is GD suitable for hot-water applications?

GD is listed primarily for clean water at room temperature or similar liquids, with a medium temperature below 80°C. Kenflo separately lists the GDR hot-water in-line pump with a medium temperature below 130°C. The two sets of information should not be combined when selecting a pump.

Planning an In-Line Pump Installation

Before replacing or adding a pump, compare the pipeline layout with the GD connection orientation and available service space. Confirm the required flow, head, temperature, pressure, speed and materials, then review supports, isolation and maintenance access. Kenflo's wider Centrifugal Pump range can be considered when an in-line arrangement is not the right fit for the system.

Conclusion

GD is a compact in-line centrifugal pump for clean-water and similar-liquid transfer. Its common-shaft close-coupled design removes the need for shaft alignment and supports direct pipeline installation. Kenflo lists a GD range of 8–50 m head and 2.4–410 m³/h flow; the proposed model is matched to the hydraulic duty, liquid conditions and installation layout.
