How to Build a Preventive Maintenance Plan for Industrial Pump Systems

A pump can run for months while a small problem develops inside the system. Operators may first notice a slight pressure loss, a warmer bearing housing, an unfamiliar sound, or more leakage around the seal. By the time production stops, the original cause may be difficult to identify. A maintenance plan gives the team a way to record those changes early and decide what deserves attention.

The first step is to write down what the installation is expected to do. Water transfer, cooling, fire protection, process service, chemical handling, and vacuum work each produce different warning signs. Pipework, valves, the motor, instruments, fluid, and operating pattern all belong in the same record.

Identify the equipment type and duty before copying an inspection form. A centrifugal pump and a liquid ring vacuum pump do not give the same clues when something changes, so one checklist rarely fits both.

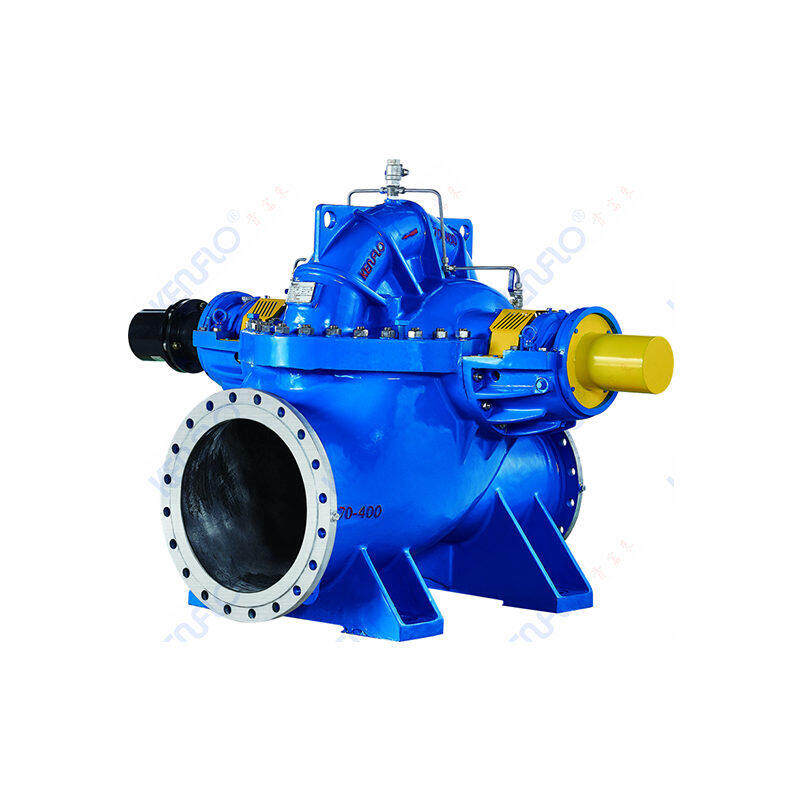

Example of a horizontal pump arrangement that can be incorporated into an inspection route.

1. Start with the system, not the equipment label

Before assigning inspection intervals, document what the pump actually does in the process. Record the fluid, temperature, normal flow, suction condition, discharge pressure, operating speed, motor rating, expected duty cycle, and the consequences of losing service. A standby unit serving a noncritical utility line can have a different maintenance strategy from a duty pump feeding a continuous chemical process.

Review the piping around the equipment as well. Poorly supported pipework, a partially closed valve, air entering through a suction connection, or a blocked strainer can create symptoms that look like internal pump damage. The inspection route should include the suction and discharge sides, valves, couplings, baseplate, motor, instrumentation, and any seal-water, cooling, or separator system. If the duty or fluid has changed, record that change before comparing new readings with the old baseline. For example, a horizontal double-suction pump used for water transfer should have its suction balance, bearing temperatures, coupling alignment, and discharge pressure tracked under a consistent load.

2. Set a baseline

A baseline is a set of readings taken when the installation is known to be operating correctly. It should include flow or a practical process proxy, suction and discharge pressure, motor current, bearing temperature, vibration at defined points, speed, seal leakage, and the condition of the operating fluid. Note the date, load, fluid temperature, instrument used, and location of every reading. Without that context, two numbers from different conditions may be impossible to compare.

Use the baseline to establish normal ranges rather than relying on a universal alarm value. Manufacturer limits, applicable site standards, and the pump’s duty point should guide the final thresholds. A trend that moves steadily away from the baseline deserves attention even when it has not yet crossed an emergency limit.

3. Divide work into practical inspection intervals

A useful schedule has several layers. Operators can perform short visual and audible checks each shift or day: look for leakage, listen for changes, confirm that valves are in the intended position, check pressure indications, and report abnormal heat or smell. Weekly or biweekly checks can include coupling guards, foundation bolts, lubrication condition, strainers, seal support, and housekeeping around the skid. The interval should be short enough to reveal a change before it becomes a trip or a leak.

Monthly or quarterly work should include recorded vibration and temperature readings, alignment review, motor and electrical checks, instrument verification, and a comparison with the baseline trend. During an annual outage or a condition-based intervention, the team can inspect wear components, clearances, shaft or sleeve condition, impeller surfaces, casing joints, and the condition of gaskets and seals. The actual interval should follow duty severity, manufacturer guidance, fluid characteristics, and operating history.

4. Turn readings into decisions

Data only helps when it leads to a defined response. A mild trend may call for a repeat reading and a review of process conditions. A persistent increase may trigger an alignment check, lubrication analysis, or a controlled inspection at the next available window. A rapid rise, severe leakage, or unstable pressure may require immediate isolation under the site’s safety procedure.

Vibration should be measured at repeatable points and with a consistent sensor position. Temperature readings should be taken after the unit reaches a comparable operating state. Current and pressure trends should be interpreted together: a change in one measurement can result from a process change, while changes in several related measurements are stronger evidence of a mechanical or hydraulic issue.

5. Control lubrication, seals, and alignment

Many avoidable failures begin with incorrect lubrication. Use the specified lubricant, quantity, and interval, and keep grease types separated unless compatibility has been confirmed. Excess lubricant can raise temperature just as surely as insufficient lubricant. Record the product, batch, date, and technician so that contamination or a change in practice can be traced.

Seals should be inspected for the type and amount of leakage expected by the design. A small, stable leakage pattern may be normal for one arrangement and unacceptable for another. Check seal support conditions, flush or cooling flow, and fluid compatibility before replacing parts. Alignment should be verified after major piping work, foundation changes, coupling replacement, or any event involving unusual vibration. Soft foot, pipe strain, and a damaged coupling can each undermine an otherwise sound installation.

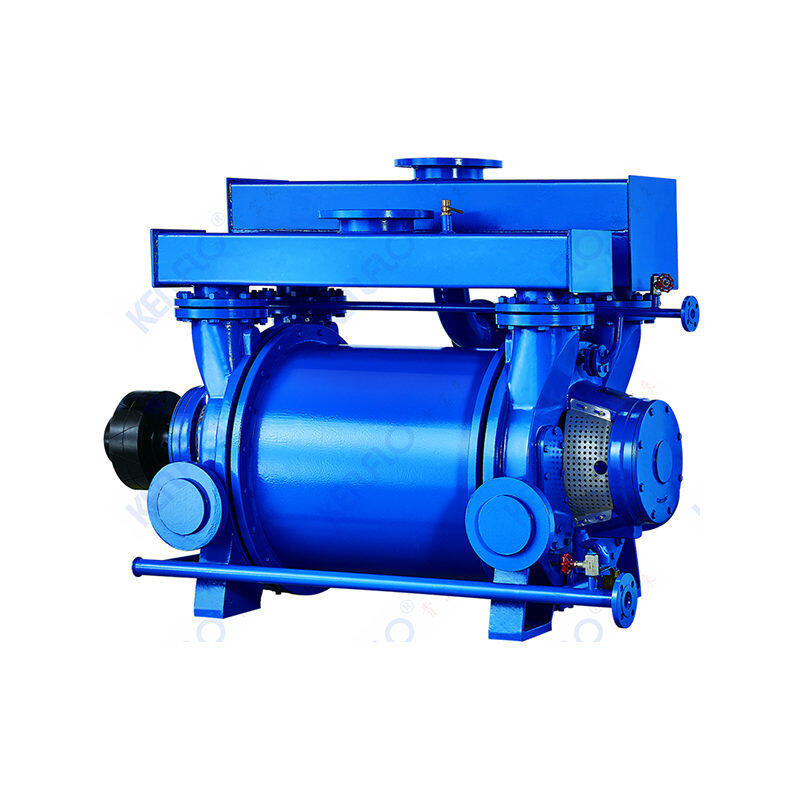

Vacuum-service equipment also benefits from a documented baseline and condition-based inspection route.

6. Link spare parts to failure risk

A spare-parts list should reflect the site’s failure modes, lead times, and service criticality. Commonly reviewed items include bearings, mechanical seals or packing, gaskets, sleeves, couplings, wear rings where applicable, lubricants, fasteners, and instrumentation. Keep preservation, storage life, material compatibility, and identification under control. A shelf full of unverified parts is not the same as a reliable spare-parts program.

Use a bill of materials linked to the asset record, with the correct revision, material, dimensions, and supplier information. For critical equipment, define whether the site needs a complete cartridge, rotating assembly, or standby unit. This decision should be based on the time required to diagnose, order, repair, test, and recommission the equipment—not only on the purchase price.

7. Include safety and restart checks

Maintenance planning must cover isolation, lockout and tagout, depressurization, draining, electrical verification, hot-surface control, chemical exposure, and lifting. The work pack should identify stored energy and the correct method for returning the equipment to service. After assembly, verify guard installation, rotation direction, valve lineup, lubrication, seal support, coupling condition, instrument status, and the absence of tools or debris.

Record a controlled restart. Confirm that the pump reaches stable pressure and temperature, that there is no abnormal leakage or noise, and that flow returns to the expected operating range. A post-maintenance reading becomes the new reference only after the system has demonstrated stable operation.

8. Check whether the plan is working

Track only the figures that help the team act: unplanned downtime, repeat failures, overdue inspections, seal and bearing use, energy or current trend, and the share of work orders closed with complete readings. Review them with operations and engineering each month. If the same failure returns after a repair, investigate the cause rather than simply shortening the interval.

Keep the finished maintenance record with the asset file: baseline readings, work orders, replaced parts, photographs, causes found, and restart readings. When equipment is changed, update the asset record with its duty point, materials, operating limits, and inspection requirements before the next shift inherits the old route. That keeps the plan tied to the installation instead of copying an interval from an unrelated asset.

Conclusion

The result should be a clear record of how the installation behaves: what is normal, what is changing, who responds, and what was found after the work. That record helps the next technician make a better decision and gives engineering a traceable basis for changing an interval. If a replacement is needed, the same records also give the supplier the operating information required to discuss the duty with Kenflo Pump.
