Liquid ring pumps have been a crucial component in a wide range of industries, serving as reliable tools for various applications. These pumps, known for their unique design and exceptional capabilities, have earned a significant place in the world of fluid handling.
In this comprehensive guide, we will delve into the intricacies of liquid ring pumps, exploring what they are, how they work, and the multitude of applications they cater to.
By the end of this article, you'll have a deep understanding of liquid ring pumps and their significance in different sectors.

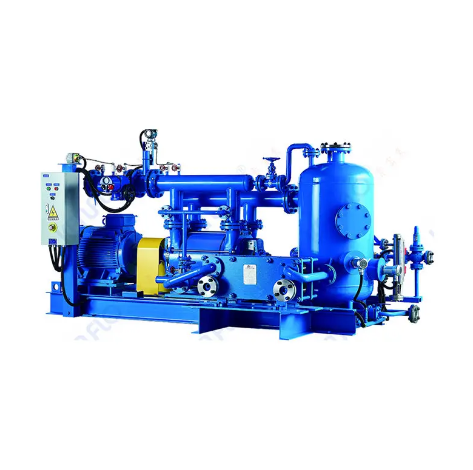

A liquid ring pump, also known as a water ring pump, is a type of positive displacement pump used for the transfer of gases and vapors. The unique feature of this pump is the liquid ring, which is created by a rotating impeller. The liquid, typically water, acts as both the sealing and compressing medium. The pump's design ensures that the liquid ring maintains contact with the impeller, creating a seal that allows for the efficient compression and transportation of gases or vapors.

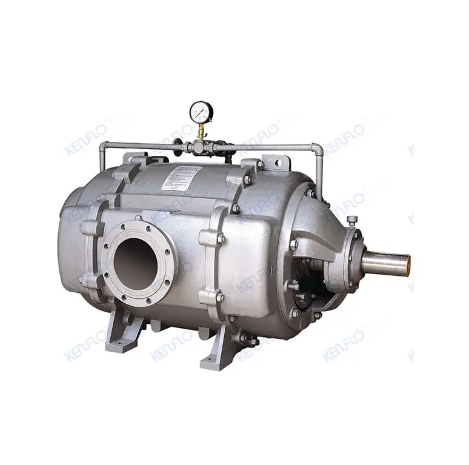

Liquid Ring Vacuum Pump Suppliers
To understand how a liquid ring pump works, let's break down the process into key steps:
Impeller Rotation: The heart of the liquid ring pump is the impeller, which is connected to a shaft and placed eccentrically within the pump casing. When the pump is in operation, the impeller rotates at a high speed within the casing.
Liquid Inlet: Liquid, typically water, is introduced into the pump casing. This liquid plays a dual role. First, it serves as a sealing liquid, and second, it acts as the compressing medium.
Formation of Liquid Ring: As the impeller rotates, it creates a centrifugal force that forces the liquid to form a stable ring or cylindrical shape around the impeller. This liquid ring adheres to the internal wall of the casing.
Gas or Vapor Inlet: The gases or vapors that need to be pumped are introduced into the pump's inlet. These gases or vapors are captured within the liquid ring due to the impeller's action.
Compression: As the impeller continues to rotate, it causes the liquid ring to move in a cyclical motion. This movement compresses the entrapped gases or vapors. The volume of the liquid ring changes during the rotation, leading to compression and subsequent discharge of the gases or vapors.
Discharge: Once the gases or vapors are sufficiently compressed, they are discharged from the pump through the outlet.
Liquid Recirculation: The liquid used for sealing and compressing is continuously recirculated, ensuring the maintenance of a stable liquid ring throughout the pump's operation.
Now, let's dive deeper into some specific applications of liquid ring pumps in different industries:
●Pharmaceuticals: In pharmaceutical manufacturing, liquid ring pumps play a crucial role in maintaining vacuum conditions for processes like solvent recovery, drying, and distillation. Their ability to handle solvents and sensitive pharmaceutical products safely makes them an ideal choice.
●Food Processing: liquid ring pumps are widely used in the food industry for vacuum packaging, deaeration of liquids, and the conveyance of food products, such as milk and dairy.
●Environmental Cleanup: These pumps are instrumental in soil vapor extraction and groundwater remediation, aiding in the removal of volatile organic compounds (VOCs) and contaminants from the environment.
●Oil and Gas Industry: Liquid ring pumps are essential for vapor recovery, gas stripping, and hydrocarbon handling. They ensure the safe transfer of gases and vapors in challenging conditions.
●Chemical Processing: The chemical industry relies on liquid ring pumps for handling corrosive and hazardous gases. Their robust design and resistance to chemical corrosion make them indispensable for various chemical processes.
●Textile Industry: Liquid ring pumps help in drying and deaeration processes in the textile industry, ensuring that textiles are efficiently processed and prepared for various applications.
Liquid ring pumps are versatile and reliable devices that find applications in numerous industries, thanks to their unique design and effective operation. They have become indispensable in processes that require vacuum creation, gas compression, and the safe handling of gases and vapors. From pharmaceuticals to food processing and environmental cleanup to the oil and gas sector, these pumps play a pivotal role in ensuring the smooth operation of critical processes.
