Centrifugal Pump

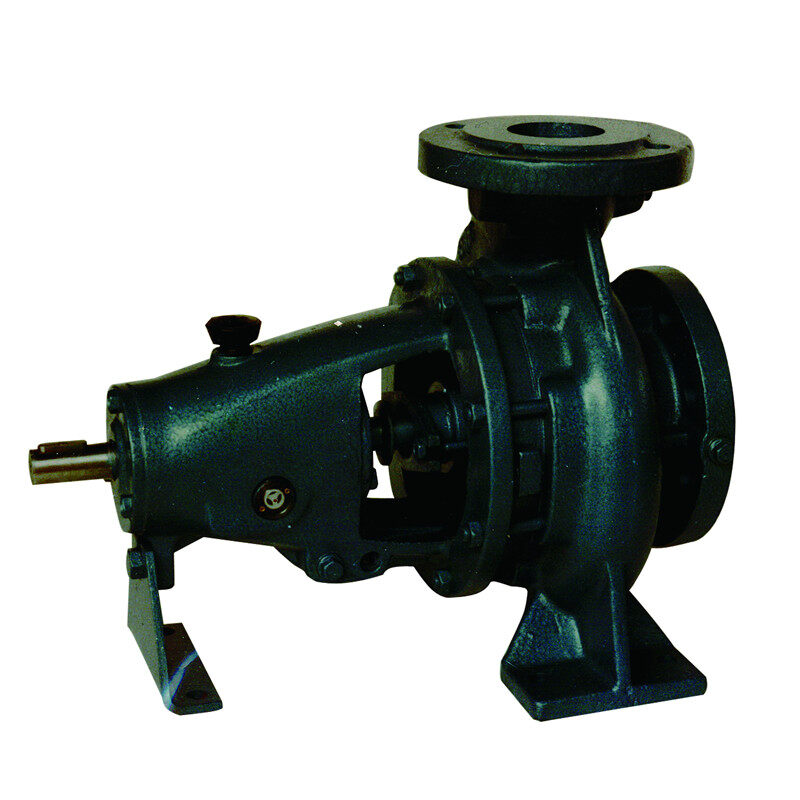

XA Single Stage Centrifugal Pump

Based on independent research and development, Kenflo has been winning the market by continuously launching products with advanced technology, high efficiency and energy saving and reliable operation. After years of effort, the centrifugal pumps have been upgraded, new series of end suction pump, inline pump and API pump have been developed,and widely applied in large petrochemical site and the energy conservation transformation projects.

End suction pumps built to BS EN 733(Ex DIN 24255)Standard and ISO9908 standard. Back-pull-out design, excellent anti-cavitation capability, wide range of high effciency performance, high parts interchangeability. Various materials are available. Well recognized economical DIN standard pumps.

Quick Inquiry

Share

1、 Product introduction

XA is used for handling clear water or the liquids similar to the water physically and chemically finding the applications for water feed and supply service in mine, plants and towns, air-conditioning, extinguishing and irrigation.

In spite of the same specification, the pump's performances vary with the diameter of the impeller. (Indicated with the block letters A,B and C in the end of the designation of the type. )

The pump is simple in structure, reliable in performances, small in size, low in power consumption, convenient in maintenance and of good cavitation proof.

XA has 42 models with the shaft in four sizes, suitable for various handling duties. For the pump with a same specification, the components, such as shaft, bearings, shaft sleeve, shaft seal and the fasteners of impeller are exchangeable. In addition, only five types of bearing brackets are applied to the whole series.



2、Description of structure

XA is a back-open type. The pump cover and the impeller can be dismantled without taking out both the suction and discharge piping. In the bearing bracket, there are two ball bearings which are lubricated with oils or grease. The pump is driven through the flexible couplings by the motor. Volute casing, feet, and both suction and discharge flanges are cast integrally in one piece.



3、Application field

          · Water Supply                                       · Water boosting

          · HVAC Application                                · Chilled water

          · Fire-fighting System                            · Condenser water

          · Cooling water                                      · Irrigation



4、Material of Main Parts for XA Pump

Parts Material Code
DI CI FP FK V4
Casing

Cast iron

EN-GJL-200

Cast iron

EN-GJL-200

Cast iron

EN-GJL-200

Cast iron

EN-GJL-200

316 Stainless Steel

Pump Cover

Cast iron

EN-GJL-200

Cast iron

EN-GJL-200

Cast iron

EN-GJL-200

Cast iron

EN-GJL-200

316 Stainless Steel
Impeller

Cast iron

EN-GJL-200

Cast iron

EN-GJL-200

Bronze

CuSn5Zn5Pb5

Zinc Free Bronze

ZCuSn10P1

316 Stainless Steel
Shaft Carbon steel

Stainless Steel

BS EN 10088-3-1.4021

Stainless Steel

BS EN 10088-3-1.4021

Stainless Steel

BS EN 10088-3-1.4021

Stainless Steel

BS EN 10088-3-1.4021

Seal Mechanical Seal
Soft Packing
