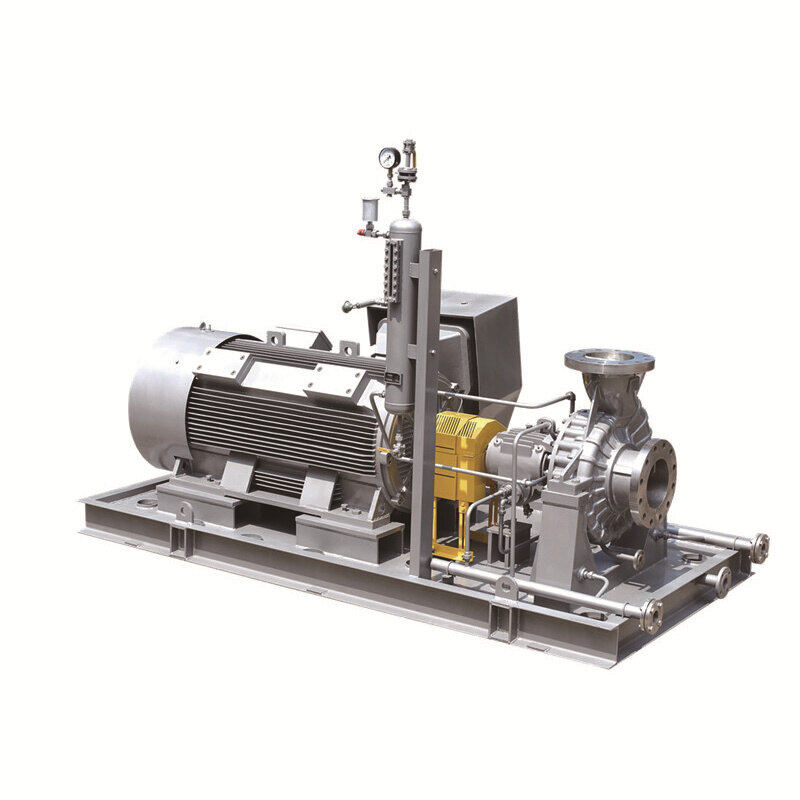

High-temperature liquid service places several requirements on a centrifugal pump at the same time. Temperature affects the liquid, materials, sealing arrangement and maintenance plan, while the process still depends on the required flow and head. Kenflo's KPP Single Stage End Suction Process Pump is designed for process duties that may involve low- or high-temperature liquids, high pressure and special fluid properties. A suitable configuration should be selected from the complete duty rather than from temperature alone.

Why High Temperature Changes Pump Selection

High temperature is not an isolated specification. It must be considered with the liquid composition, operating pressure, flow rate, head, duty cycle and project standard. Some process liquids may also be corrosive, flammable, toxic, easy to crystallize or otherwise difficult to handle. These conditions influence the pump structure, wetted materials, shaft seal and bearing arrangement.

Kenflo's centrifugal pump product-category information lists a medium temperature range of -70°C to +450°C. This category range does not define the operating range of every KPP model. The KPP configuration, materials and sealing arrangement are matched to the actual process conditions.

Confirm the Fluid Before Confirming the Pump

The first selection step is to define the liquid. Record its name and composition, operating temperature, pressure, required capacity and required head. The project team should also identify corrosiveness, flammability, toxicity, crystallization risk and any other property that can affect the pump's wetted parts or sealing system.

This information separates a general liquid-transfer duty from a process-pump duty. KPP is described for low-temperature, high-temperature, high-pressure and other special industrial liquid duties, including certain flammable, explosive, poisonous, easy-to-crystallize or corrosive liquids. The material and seal arrangement are selected for the specific liquid.

Temperature Range and KPP Performance Information

The category temperature information and the performance figures listed for KPP are shown separately below.

Materials for High Temperature Service

Material selection must follow the liquid, temperature and pressure rather than the word high-temperature by itself. The centrifugal pump product information lists cast iron, bronze, SS304/304L, SS316L and duplex stainless steel among the available material families. KPP also lists carbon steel, 12% chromium steel, austenitic stainless steel and duplex stainless steel for flow-passage configurations.

Casing, impeller, shaft and other wetted parts should be reviewed as a set. A material suitable for one liquid may not suit another liquid at the same temperature. For demanding media, the final arrangement should be confirmed from the complete process data.

Mechanical Seals and API 682 Requirements

High-temperature service also raises the importance of the shaft-sealing arrangement. The seal must be compatible with the liquid, temperature, pressure and operating cycle. KPP's shaft seal is designed in accordance with API 682, providing a relevant reference for process specifications that require this standard. Seal materials, arrangement and operating limits remain tied to the actual duty.

API 682 provides a reference for the seal arrangement; the selected seal and its operating limits are matched to the liquid, temperature, pressure and operating cycle.

When API 610 Matters

API 610 is relevant when the project requires a process pump designed and specified for demanding industrial service. KPP is identified as an API 610 OH2 and API 682 product. The wider centrifugal pump information also lists ISO 2858, ISO 5199, ISO 9908, EN 733 and GB/T 5657 among the applicable design or technical references for the product range.

Different standards address different design and project requirements. The applicable standard comes from the project specification and process duty, then is connected to the selected pump's performance, materials, sealing and inspection requirements.

Industrial Applications for High Temperature Process Pumps

KPP is described for oil refining, petrochemical industry, coal chemical industry, low-temperature engineering, chemical industry, seawater desalination, offshore industry and pharmacy. These applications cover different liquid properties and operating conditions, so the same pump name does not imply the same configuration in every project.

Refining and petrochemical service may require temperature, pressure, flammability and sealing to be reviewed together. Chemical and coal-chemical duties may place more emphasis on material compatibility and crystallization risk, while offshore or seawater-related duties require corrosion and installation conditions to be included. The actual duty determines the final selection.

How to Select a High Temperature Centrifugal Pump

A practical selection request should include the following information:

• Medium name and composition

• Normal, minimum and maximum temperature

• Operating pressure and required flow rate

• Required head and duty cycle

• Corrosiveness, flammability, toxicity or crystallization risk

• Required materials and shaft-seal standard

• Applicable project standard, motor and installation requirements

This sequence keeps the selection connected to the process. Temperature is only one part of the duty; the liquid, pressure, capacity, head, materials and standards determine the configuration.

Installation and Lifecycle Considerations

High-temperature pump projects should allow for suitable foundations, pipe supports, service access and safe isolation. Pipe loads should not be transferred directly to the pump casing. Before commissioning, confirm rotation, valve positions, seal conditions and the expected operating point. Recording flow, pressure, temperature, vibration, current and noise establishes a useful baseline for later maintenance.

Continuous duties also benefit from lifecycle planning. Consider spare parts, inspection access and the consequences of an unplanned shutdown before ordering. Inspection intervals and auxiliary arrangements depend on the selected configuration and operating conditions.

FAQ

What temperature range is available for Kenflo centrifugal pumps?

Kenflo's centrifugal pump product-category information lists a medium temperature range of -70°C to +450°C. The operating range for a selected KPP configuration is matched to the medium, pressure, materials and seal arrangement.

Is KPP suitable for high-temperature liquid service?

KPP is described for conveying low- and high-temperature liquids, as well as high-pressure and other special industrial liquids, including certain flammable, explosive, poisonous, easy-to-crystallize or corrosive services. The KPP configuration is selected from the actual process duty.

Which standards are relevant to high-temperature process pumps?

KPP is identified with API 610 OH2 and API 682. Kenflo's centrifugal pump information also lists ISO 2858, ISO 5199, ISO 9908, EN 733 and GB/T 5657. The project specification determines which standard applies.

Which materials are available for high-temperature centrifugal pumps?

The listed material families include cast iron, bronze, SS304/304L, SS316L and duplex stainless steel. KPP also lists carbon steel, 12% chromium steel and austenitic stainless steel for flow-passage configurations. The final material selection depends on the liquid, temperature, pressure and corrosion conditions.

What information is needed before selecting a high-temperature pump?

Provide the liquid composition, temperature, pressure, flow rate, head, duty cycle, corrosion or crystallization risks, materials, shaft-seal requirements, project standard and installation conditions. These details allow evaluation against the real duty.

Planning a High Temperature Pump Project

Before requesting a quotation, prepare the process data and identify the required standard. Confirm whether the project needs API 610, API 682 or another listed reference, then review material, sealing, installation and maintenance requirements together.

Conclusion

Kenflo's KPP process pump is identified for demanding industrial liquid service and API 610 OH2 and API 682 requirements. Its listed KPP performance range is 11.5–2390 m³/h flow and 27–260 m head, while the -70°C to +450°C information belongs to the wider centrifugal-pump product category. The proposed KPP configuration is matched to the actual process duty.
