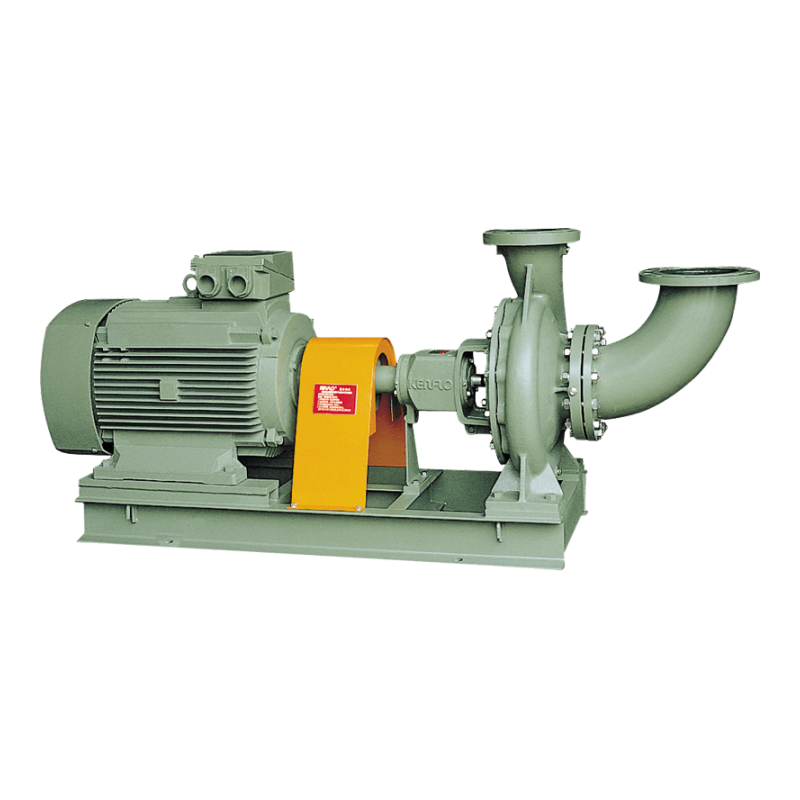

HVAC water circulation depends on a pump that matches the required flow, head, medium and temperature. Kenflo's KTP Air-Conditioning Pump for HVAC Water Circulation is developed specifically for HVAC cooling systems. Its compact construction, low-speed operation and service-access design help make it a practical choice when water circulation and maintenance requirements must be considered together.

HVAC Water Circulation Starts with the Duty Point

A suitable HVAC pump begins with the system duty rather than the pump name alone. The required flow rate and head determine whether the pump can move water through the connected circuit, while the medium and temperature define whether the selected construction matches the service. KTP is intended for clean water or liquids with physical and chemical properties similar to water, with a medium temperature range of -10°C to +104°C.

The stated KTP range covers flow rates from 9 to 1080 m³/h and heads from 13 to 56 m. These values provide the starting range for system selection. The actual operating point still needs to be checked against the HVAC design conditions and the pump curve for the selected model.

Where KTP Fits in an HVAC System

KTP is a single-stage, single-suction centrifugal pump developed for HVAC cooling systems. In a water-based air-conditioning installation, the pump's role is to circulate the specified water or similar liquid through the system. Its compact footprint and light weight can be useful where equipment-room space and handling access need to be managed, but the final arrangement must follow the project's piping, foundation and service requirements.

The series is based on the XA and IS pump series and complies with BS EN 733 and ISO 9908. These standards make dimensional comparison easier, but any replacement or interchangeability review also needs to match dimensions, connections and hydraulic duty.

A Pump Design Built Around Service Access

Maintenance access is an important part of HVAC pump selection because the equipment must remain serviceable after installation. KTP uses a back pull-out design. The pump cover and impeller can be removed without disconnecting the suction or discharge piping, allowing service work to be planned around the installed pipework rather than requiring a complete piping disassembly.

KTP uses mechanical seals, and the normal service life of the mechanical seal exceeds 10,000 hours under normal operating conditions. The pump cover includes flush ports for cleaning the seal chamber and cooling the mechanical seal faces. These details support routine servicing and help maintain the sealing arrangement during operation, together with the installation environment and the HVAC maintenance procedure.

Noise, Operation and Hydraulic Stability

HVAC equipment is often installed near occupied or regularly serviced areas, so operating characteristics matter in addition to hydraulic capacity. KTP uses a dedicated low-speed, low-noise HVAC motor. The pump also has a simple construction, low power consumption and good cavitation resistance, as stated for the series.

Hydraulic balance is addressed through balancing holes or back vanes that balance axial thrust. KTP is available with four shaft, bearing bracket and coupling sizes across the range. Together, these design features support a pump selection process based on the required duty and the configuration of the selected model, without relying on unsupported assumptions about motor power, sound level or efficiency.

Materials for Water-Based HVAC Duties

Standard KTP materials include a ductile iron casing, cast iron impeller, bronze wear rings, stainless steel shaft and NSK bearings. Optional materials include a 316 stainless steel casing and a 316 stainless steel or copper alloy impeller. Material selection should follow the actual circulating medium and project conditions rather than being made from the pump name alone.

KTP Operating Range

FAQ

Is KTP suitable for clean water in an HVAC system?

Yes. KTP is designed for clean water or liquids with physical and chemical properties similar to water. The selected model should still be checked against the required flow, head and medium temperature.

What type of pump is KTP?

KTP is a single-stage, single-suction centrifugal pump developed specifically for HVAC cooling systems.

What head and flow rate can KTP provide?

The stated range is 13–56 m for head and 9–1080 m³/h for flow rate. The final model should be selected from the actual HVAC duty point.

What standards does KTP comply with?

KTP complies with BS EN 733 and ISO 9908. The series is based on the XA and IS pump series, while any replacement or interchangeability review also needs to match dimensions, connections and hydraulic duty.

Can the pump cover and impeller be removed without disconnecting the pipes?

Yes. The back pull-out design allows the pump cover and impeller to be removed without disconnecting the suction or discharge piping.

What materials are available for KTP?

Standard materials include a ductile iron casing, cast iron impeller, bronze wear rings, stainless steel shaft and NSK bearings. Optional materials include a 316 stainless steel casing and a 316 stainless steel or copper alloy impeller.

Planning a KTP Pump for an HVAC Project

Before ordering, confirm the required flow rate, head, medium, temperature range, material arrangement and connection requirements for the installation. It is also useful to review the available service space because the back pull-out design is intended to support maintenance without removing the suction and discharge piping. The selected KTP model should be matched to the actual HVAC duty and the applicable project standards.

Conclusion

KTP combines an HVAC-specific low-speed, low-noise motor with a compact centrifugal-pump design, back pull-out service access and mechanical-seal provisions. For HVAC cooling systems using clean water or similar liquids, choose the KTP configuration that matches the duty point, materials, connections and applicable standards.
