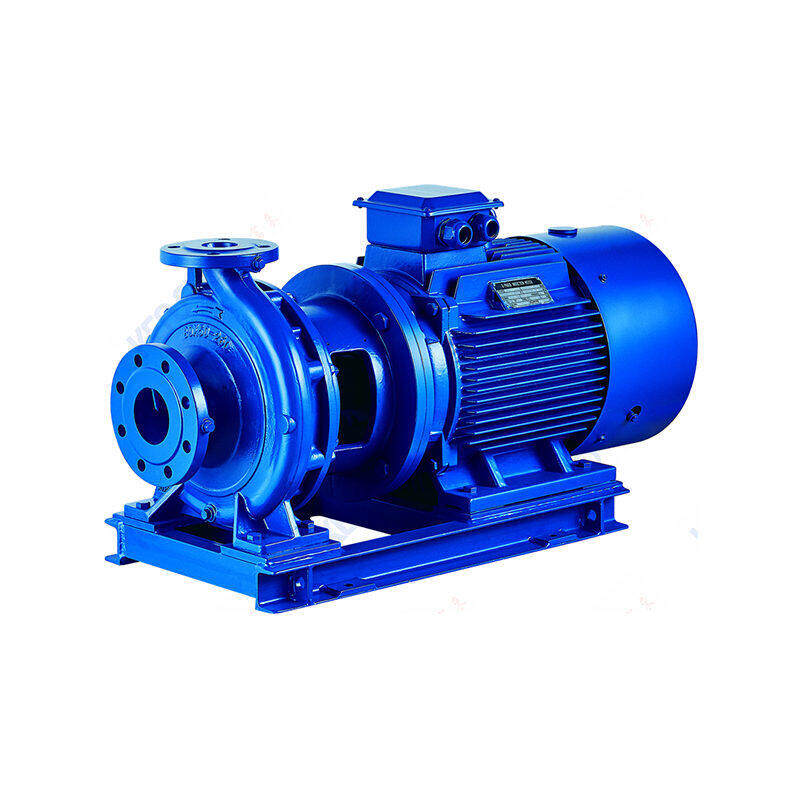

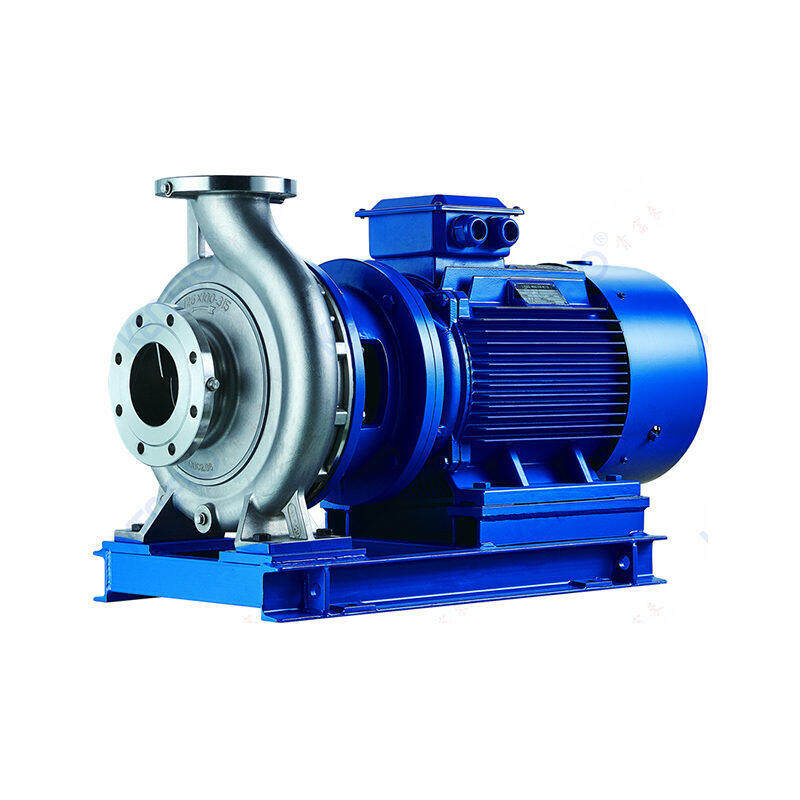

Industrial pump selection should begin with the working conditions rather than with a preferred model name. The liquid, required flow, head, temperature and application all affect the suitable configuration. The KMP Monoblock Pump from Kenflo is a direct-coupled centrifugal pump designed for general industrial liquid transfer. The KMP design combines a compact back-pull-out structure with ISO 2858 and ISO 9908 references. It is used for air-conditioning, fire protection, water supply and treatment, irrigation and other general industrial services.

Why Application Determines Pump Selection

A centrifugal pump must be evaluated against the actual duty point. Before selecting a KMP pump, confirm the liquid being handled, the required flow and head, the medium temperature and the expected operating conditions. The KMP series is designed for clean water or weakly corrosive liquids without solid particles or fibers. These conditions should be checked before the pump configuration is finalized.

The application also affects the required material and sealing arrangement. A high-rise water supply system, a building fire-protection system and a process cooling-water line may have different duty requirements even when they all use a centrifugal pump. Providing complete process information allows the pump supplier to confirm the appropriate option and the relevant performance data.

What Is a KMP Monoblock Pump

The KMP is a back-pull-out monoblock pump with the pump and motor directly connected through a direct connection frame. KMP has a simple and compact structure, a shorter axial length and reduced floor space compared with other products that meet the relevant international standards. This arrangement is useful when a project needs a centrifugal pump that can fit into a limited installation area.

Kenflo describes the KMP series as a product developed for high efficiency and convenient maintenance. The pump body uses a high-efficiency volute design, while the series includes multiple impeller diameters and speed options. Kenflo's product information lists 22 product specifications and hundreds of performance options through different impeller diameters and speeds.

Key Features of the KMP Series

Compact Direct-Coupled Structure

The KMP pump and motor are directly connected. This creates a simple arrangement with a compact footprint and a shorter axial dimension. The structure can help project teams plan equipment space more efficiently, but the final installation still needs to be checked against the approved layout and the required pipe connections.

ISO 2858 and ISO 9908 Requirements

The KMP pump body size complies with ISO 2858, with the corresponding GB/T 5662 reference, while the technical conditions comply with ISO 9908 and GB/T 5657. These references help engineers compare the product with other standard-compliant centrifugal pumps during project specification and procurement.

Mechanical Seal and Impeller Balance

KMP uses a single-end mechanical seal, and its impeller balance accuracy is listed as G6 Level 3. These features are part of the pump construction and support reliable operation when matched to the handled liquid, temperature and operating conditions. Correct installation and maintenance remain important for controlling leakage.

KMP Technical Parameters

The table summarizes the KMP listed range. Maximum values are up to 400 m³/h flow, 160 m lift and 1.6 MPa casing pressure; these values are not fixed for every KMP configuration. Select the operating point from the actual system conditions and the performance information for the proposed model.

KMP Model Representation

The model example KMP 150x100-250 shows how the KMP designation is organized. In this example, KMP identifies the direct-coupled centrifugal pump series, 150 refers to the suction inlet diameter, 100 refers to the outlet diameter and 250 refers to the nominal impeller diameter. The example explains the notation; selection still requires a check of the duty point.

Applications of the KMP Pump

The KMP series is designed for clean water or weakly corrosive liquids without solid particles and fibers. Its applications include the following services:

• High-rise water supply
• Building fire protection
• Central air-conditioning water circulation
• Circulating water supply in process systems
• Cooling water circulation
• Boiler water supply
• Industrial water supply and drainage
• Water supply in water plants
• Irrigation

Each application still requires its own duty-point review. For example, an air-conditioning circulation system and an industrial water-supply line may require different flow, head, temperature and control conditions. The model is chosen from the actual duty and installation requirements.

Material and Sealing Considerations

KMP is available with cast iron for the casing and pump cover, cast iron or bronze for the impeller depending on the material code, stainless steel for the shaft, and a mechanical seal. The selected material configuration should be checked against the liquid and temperature before ordering. Material suitability varies with the chemical service, so Kenflo should review the actual medium before the configuration is finalized.

Installation and Commissioning

The installation should be planned around the approved pump arrangement, pipework and operating conditions. Before full operation, confirm the rotation direction, valve positions and sealing condition. During commissioning, record the delivered flow, pressure, vibration, temperature and motor current where these readings are available. Keeping this initial record gives the operations team a reference for later inspections and helps identify changes in pump or system behavior.

What to Confirm Before Ordering

Before requesting a quotation, prepare the required flow, head, medium name, medium temperature and application type. Confirm whether the liquid contains solid particles or fibers, and provide the suction and discharge connection requirements. The project team should also state any required material configuration, design reference, motor and voltage requirements, and installation limitations. These details help Kenflo confirm whether the KMP configuration matches the intended general industrial service.

Working with Kenflo

For the proposed project, Kenflo can review the actual process duty and project requirements for the KMP Monoblock Pump. Before final ordering, request the current product drawing, performance information, material details and installation guidance for the proposed configuration. This connects the pump's structure and options with the requirements of the water supply, fire-protection, air-conditioning, process-circulation or irrigation system.

Conclusion

The KMP Monoblock Pump is a direct-coupled centrifugal pump for clean water and weakly corrosive liquids without solid particles or fibers. Its compact back-pull-out design and listed ISO 2858 and ISO 9908 references suit a range of general water-transfer duties. The proposed configuration is matched to the required duty, materials and installation conditions.
